This is a blog post that I have dreamed of writing for years, in fact ever since I got hired 8 years ago: The glorious multi-core future is now. But, as always, there are strings attached so let me explain what’s in this release and what to expect. First though, if you need a primer on performance in general, you can read all about it here: A very quick performance primer
Terms of service
1. Expectations
Let me get this out of the way first: Don’t bother asking what you can expect in terms of performance gains. You could see anything from none, moderate to a lot. Multi-threading inherently only affects the CPU, so if you are GPU-bound, you won’t see any improvements in terms of FPS because the limiting factor is still the GPU. Everything else depends on how you have configured X-Plane, your hardware, what add-ons you are running with etc. The only way to know what, if any, improvements you will see is by installing 12.4 and trying it out yourself.
2. Future Plans
Also, this isn’t the last multi-threading update. I’m very excited about it, but it’s a small fraction of what we have planned. There is more engine refactoring work to be done, more code to be optimized, but we figured “Why sit on improvements that we have right now when we could get them out to customers to properly battle test them?”
Where we came from
One myth is that X-Plane was not multi-threaded at all, which depending on your point of view is either patently false or somewhat true. X-Plane does a lot of work on background threads, especially scenery loading and texture paging. But those are all long running background tasks, what we lacked so far was true per-frame multi-threading. We had a few small tasks that could run in parallel, but the bulk of the frame was generated on the main thread.
It’s generally assumed that the flight model takes up the most time for X-Plane, but in practice, it’s usually scene graph traversal and rendering that make up the bulk of frame time, sometimes up to 75%. The more demanding your scenery, the more time will be spent on this task. For those not in game dev, scene graph traversal is the process of, well, traversing the scene and figuring out what needs to be rendered and what doesn’t. The second part is processing the data that needs to be rendered and then actually issuing all of the rendering commands, this usually involves sorting the render data in some way to reduce the number of material and state changes. All of this takes time and the more complex the scenery, the more time this takes.
There is one more thing to keep in mind: Shadows. Shadows get rendered by rendering the scene from the suns perspective, which is then used to figure out which parts of the scene the sun can see and which it can’t. By definition, everything that the sun can see is in the light and everything the sun can’t see is in the shadows. But that means that we actually have to traverse the scene twice, once for shadow rendering and once for the main scene, so while the cost isn’t double, shadows aren’t exactly free either.
You are here

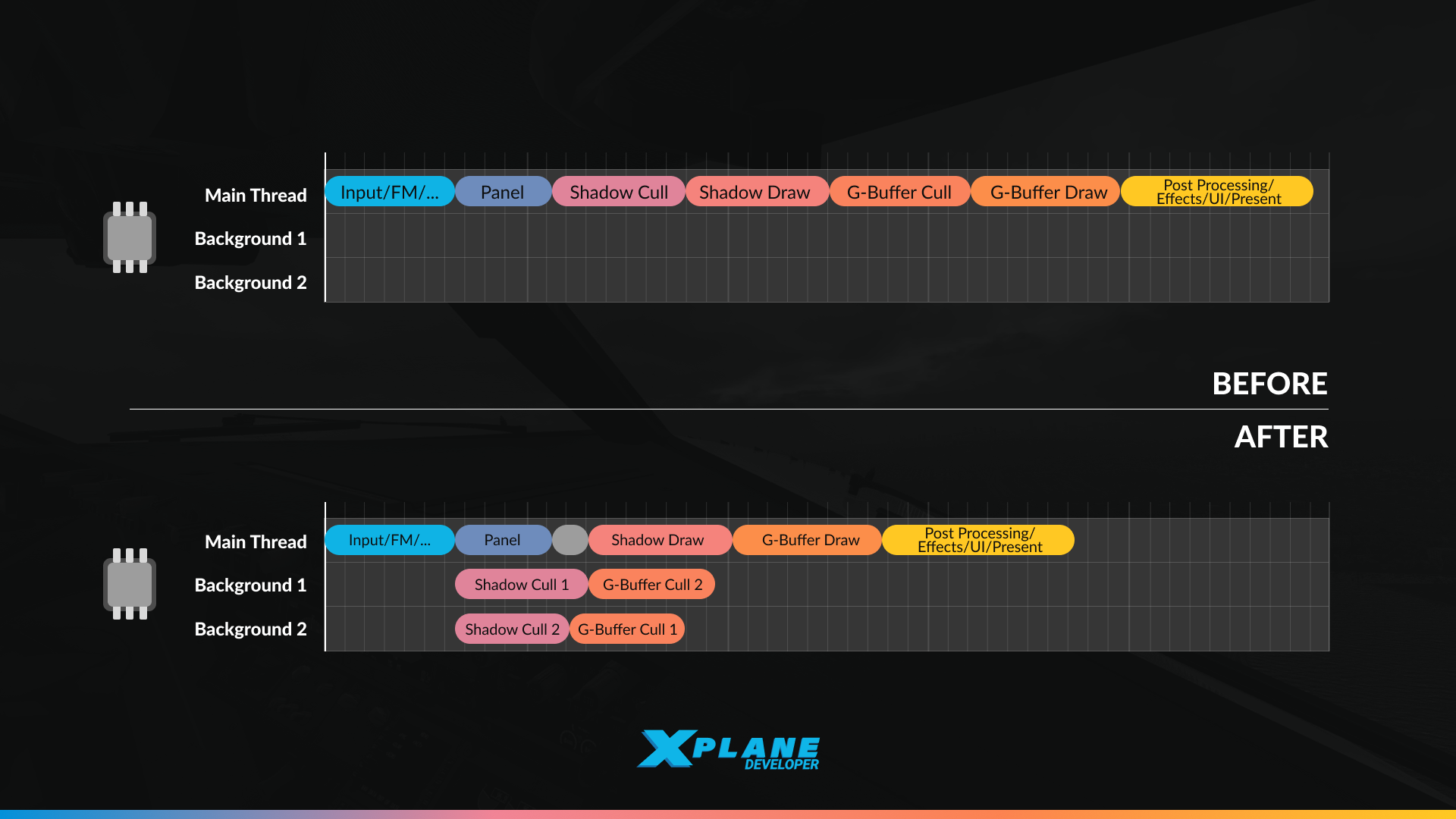

^ This is a very simplified graphic explaining the threading in X-Plane
Because the scenery traversal process takes up such a large amount of the frame time, it makes for an obvious target for multi-core improvements. And that’s exactly what’s in 12.4. As soon as the camera is resolved and we actually know where the virtual eye is and which direction it’s pointing, we kick off the scene traversal process for shadows and the main scene. It’s actually done in multiple steps across multiple CPU cores, so that we can minimize the time it takes from start to finish.
While this goes on in the background, we are now also running the panels and avionic devices. This lets us effectively hide slower avionic updates, since X-Plane can go wide on crunching the scenery at that time. You will especially notice this with add-on aircraft that have very high panel draw times, but even our Garmin and built-in instruments aren’t totally free either.
Additionally, we try to schedule things in an ideal way. So we aim to get the shadow scenery traversal and preparation done first, so as soon as the panels are done we can start actually encoding the commands for the shadow rendering. While this goes on, the much more expensive main frame scenery traversal can finish up in the background and ideally we can immediately hit go on its rendering command generation once that is ready.
Of course this is the theory, in practice things might not finish in time and then the main thread has to wait for results to come in. It should still be faster because the scene traversal itself is done in parallel, so it should be faster than if only the main thread was working on it by itself. But theory and practice don’t always line up. Again, the only way to know what perf you will see is by testing this yourself.
Additionally, we have also improved the drawing hot path and reduced the number of state changes X-Plane has to make in order to from one object to another. We also moved a lot of the just-in-time calculation for material parameters and data to the background thread so that once we are actually drawing things, we can just emit commands as fast as possible.
However, actual drawing of the scene is still single-threaded! Once the parallel scene traversal has concluded, X-Plane’s main thread will still create one command buffer to encode all of the rendering needed. Likewise, multi-monitor set ups could see a much bigger improvement in theory, but in practice we still have to traverse the scenery of each monitor in sequence.

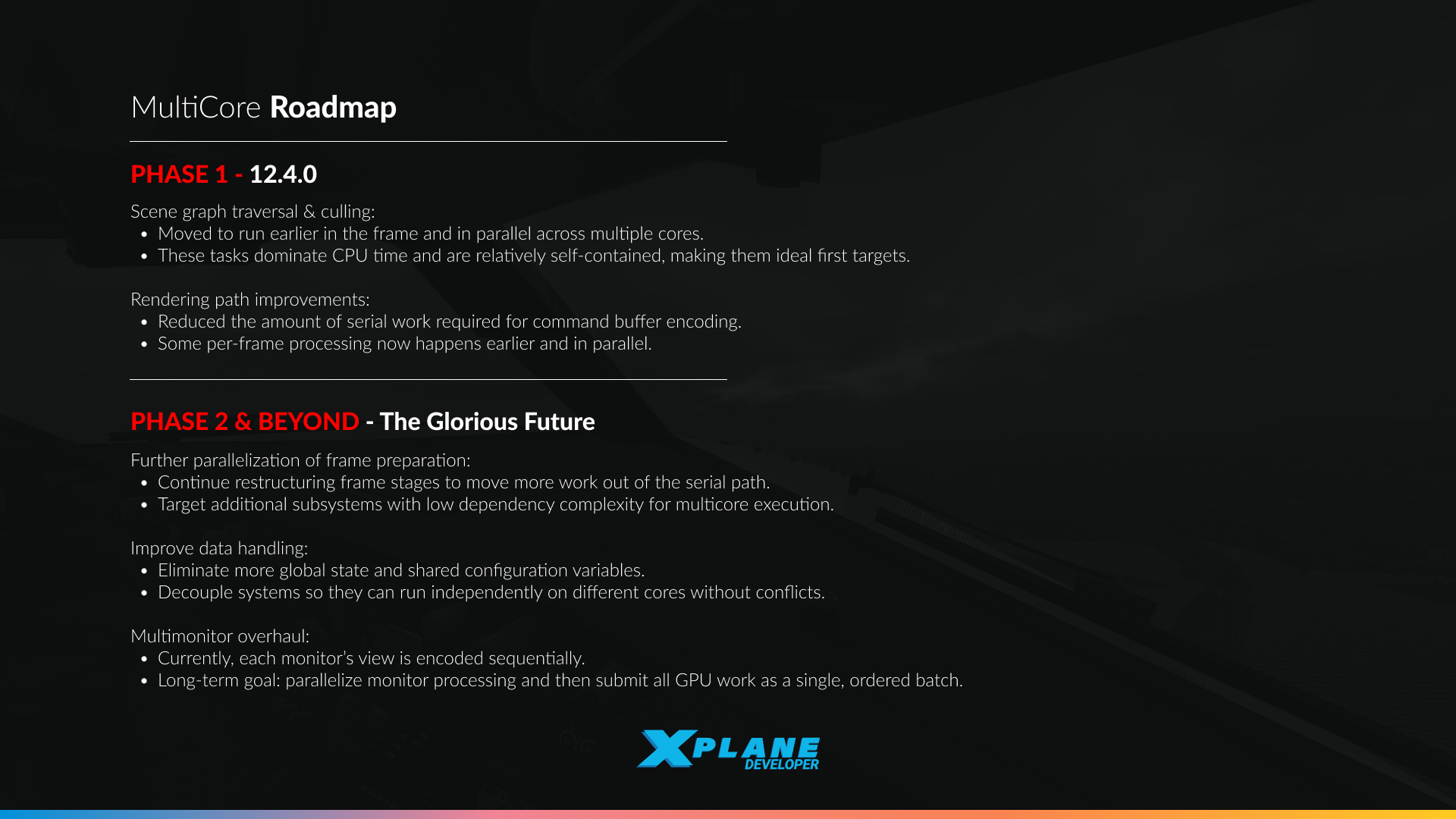

Where we are going
The obvious two are parallel rendering of the frame and doing multiple monitors in parallel. The less obvious one is that we could also do the shadows and main rendering in parallel and then just submit the work to the GPU in the right order. All of these are on the roadmap, but they require more work to the engine itself. There is still a bunch of shared global state when it comes to actually rendering a scene, which we’ll have to clean up first.
One of the things that makes me really excited is the new job system that has actually been shipped in 12.3 and which is the underlying thing that makes the multi core work possible. Instead of carefully writing C++ that dispatches and joins all work in just the right order, we can now describe the frame as individual jobs and their dependencies and the computer can figure out the optimal way to dispatch them. This is analogous to the render graph system that we introduced in 12.06 which allows us to describe the scene rendering as a series of nodes with carefully defined dependencies and then the computer can figure out how to actually bake the commands and build the resources.
This gives us huge flexibility in terms of being able to re-organize the frame, since it’s no longer a massive monolithic chunk. Besides the obvious grand improvement that is parallel rendering, we also expect to be able to leverage this system to further improve performance by scheduling the frame more efficiently. But now that the initial work is the boring present, all of this is becoming the new glorious future.
For a quick reference on performance misconceptions and understanding the frame timer, please see this other blogpost: https://developer.x-plane.com/2025/12/a-very-quick-performance-primer/
